System Administrators (SysAdmins) are the lifeblood of any business. They mantain the infrastructure, networks and systems and cloud of businesses. This is why we have developed these standards for better System Administrators.
If you still need help, visit our Network Architecture consulting page and book in a consultant.
At some point every business will experience a catastrophic incident. At these times it is important to have a plan that explains who to contact, the priority of restore and how to restore services.
At the time of a disaster, you should have a few objectives established and measure some results - The objectives are RPO (Recovery Point Objective) and RTO (Recovery Time Objective); and the measurements to take are RPA (Recovery Point Actual) and RTA (Recovery Time Actual).
It's recommended to practice your disaster recovery at least once every 12 months. This way you make sure that you are investing in the minimum amount of required resources, and that your plan actually works.
So what do these terms mean?
RPO
RPO or Recovery Point Objective, is a measure of the maximum tolerable amount of data that the business can afford to lose during a disaster. It also helps you measure how long it can take between the last data backup and a disaster without seriously damaging your business. RPO is useful for determining how often to perform data backups.
RTO
RTO or Recovery Time Objective, is a measure of the amount of time after a disaster in which business operation is retaken, or resources are again available for use. This measurement determines the amount of resources that are required for the recovery to happen within the timeframe required.
RPA
RPA or Recovery Point Actual, is the actual measurement of the amount of data lost during a disaster recovery.
RTA
RTA or Recovery Time Actual, is the actual measurement of downtime during a disaster recovery.
Note: these may all be different for different services. For example at a bank you may have a transaction database, this may need to be only ever able to experience a RPA\RTA of a few minutes as even in that few minutes, thousands of transactions could be lost. However the same bank may have a website that they are happy to have an RTA\RPA of several hours as this is much less critical to the banks overall operation.
How to calculate these values?
RTO and RPO are determined via a consultation called BIA (Business Impact Analysis). The organization needs to work out what the maximum amount of data that they are prepared to lose and also the maximum amount of time that they are prepared to be without services. These are both measured in time, and could be seconds, minutes, hours or days depending on the organization's requirements. This is a balancing act as generally the shorter the timeframe required, the more resources the organisation will need in order to achieve the target.
After this a disaster should be simulated to test that the RTA/RPA values match the RTO/RPO required by the organization.
Example: Mr Bob Northwind experienced a catastrophic incident. The failure occurred at 8pm local time on a Friday night. Their website and sales transaction software were affected.
In his Disaster Recovery Plan he had the following objectives:
Service RPO RTO Northwind Website 2 days 4 hours North Sales 4 hours 8 hours It is important that these objectives are signed off by the Product Owner as per this rule
After the recovery was complete they then analyzed the downtime which showed the following:
Service RPA RTA Northwind Website 8 hours 2 days North Sales 8 hours 8 hours After analyzing the data, they discovered a few issues with their Disaster Recovery Plan:
- They didn't have any spare hardware on premises which meant that to get the website backed up and running they needed to find a shop on a weekend to buy a server and then start the recovery process. This delayed them by an entire day.
- Mr Northwind's IT Manager had mistakenly set the backups to 12-hour backups (at midnight and midday each day). This meant that the most recent backup for both services had occurred at 12pm on Friday and they had 8 hours of missing transactions. The greatest allowable data loss should have only been 4 hours.
This explains why it is important to practice your disaster recovery plan. A real incident is not the ideal time to realize that your backup/procedures are inadequate.
For unplanned outages, see Outage - Do you have an unplanned outage process?
If your servers are down or have to go down during business hours you should notify the users at least 15 minutes beforehand so you will not get 101 people all asking you if the computer is down.
For short outages (under 15 minutes) that only affect only a few people (under 5 people), or are outside of business hours, then IM is the best method. If you use Microsoft Teams or Skype, a quick message will do.
Note: If they are not online on Teams or Skype, then they can't complain that they were not warned.
For extended or planned outages, or if you have a larger number of users (50+), email is the suggested method.
Email
If you send an email it is a good idea to tell the user a way to monitor the network themselves. Eg. Software solutions like SCOM or WhatsUp Gold.
Include a "To myself". It gives visibility to others who are interested in what needs to be done to fix the problem and makes it easier to remember to send the 'done' email. E.g. "done - CRM is alive again".
To: SSWAll Subject: Planned Outage Hi All
Here is the summary of the outage plan:
Planned/Unplanned: Planned Change Description: Install Windows Updates and Restart Server Risk (see table below): LOW RISK (LOW Probability and MEDIUM Impact) Reason For Change: Windows 2016 Windows Updates Uptime over last month: 91.361% Planned Outage (mins): 150 Planned Start Time: 26 October 9:00 PM Planned Finish Time: 26 October 11:30 PM Affected Services: \Windows Server 2016 , sharepoint.ssw.com.au intranet.ssw.com.au , projects.ssw.com.au Risk Lookup Table by Probability and Impact:
Note: The following servers will be affected:
and
To myself
To show others who are interested in what needs to be done to fix the problem:
Detailed Change Plan:
- Lockout users via IIS
- Backup server
- Install Windows Updates
- Reboot server
- Follow test plan
- Based on result of test plan, follow backout plan if procedure failed
- Procedure completed
Test Plan:
- Check Event log for errors
- Check each affected service is running
- Call test users to start “Test Please” on the affect services
- Get result of user “Test Please” by email by 11:15 PM
Backout Plan:
- Restore server from backup
Note: <This is as per rule Outage - Do you have a planned outage process? >
Figure: Example planned outage email
Pre-Outage Checklist
Immediately before the scheduled downtime, check for logged in users, file access, and database connections.
Users
Run | Taskmgr | Users' tab | Check active connections | Request users to log off
Files
Run | compmgmt.msc | System Tools | Shared Folders' | Review 'Session' and 'Open Files' for user connections
Database
SQL Server Management Studio | SQL Server Connection | Activity Manager
Once these have been checked for active users, and users have logged off, maintenance can be carried out.
Restarts should only be performed during the following time periods
- Between 7am and 7:05am
- Between 1pm and 1:05pm
- Between 7pm and 7:05pm
If a scheduled shutdown is required, use the PsShutdown utility from Microsoft's Sys Internals page.
Always reply 'Done' when you finish the task.
During your course of being a SysAdmin, you will come across many unplanned outages. Some of them will impact BAU (Business as usual) and others will just be minor service outages. Do you know what to do in the event of these outages?
For planned outages, see Outage - Do you have a planned outage process?
Below is a process for these types of outages. Some amount of common sense is required here, an outage would be if services that would affect BAU work are disrupted and/or some hardware has failed.
Hardware Outage:
- Firewall
- Switch
- Blade Servers
- SAN Storage
- UPS
Service Outage:
- Active Directory Domain Services
- O365 Services; Teams, SharePoint, Exchange, OneDrive
- File Servers
- SQL Servers
- IIS Servers
Determining what services are disrupted
Many services can be used for device monitoring e.g. WhatsUp Gold, Solarwinds, SCOM. You would do the following in any of them:
- Login to monitoring service
- Check to see what services are down
First contact
After you have determined what services have been disrupted it is time to call your SysAdmin team and organize a quick conference call. This will allow you to have a discussion prior to making any changes/fixes that could cause the outage to become worse.
Key discussion points:
- What services have been disrupted?
- What is the impact of these services?
- Is an email to everyone in your company required?
- What are your next steps?
What if you cannot reach anyone?
If you cannot reach anyone move on to the Email section.
Email
If from the previous discussion you have determined that an email needs to be sent to your entire company, or you have decided this is necessary if you cannot contact anyone above, send an email in the following format:
To: SSWAll Subject: SysAdmins – Outage Notice A separate email needs to be sent to SysAdmins outlining what was discussed on the call. If no one was contactable, please proceed with what you have determined on your own.
To: SysAdmins Subject: SysAdmins – Outage Notice Next steps did NOT resolve the issue
If you have completed your tasks but the issue has not resolved, please try to make contact with the SysAdmin team again and send an updated 'To Myself' email.
Next steps resolved the issue
If your actions have resolved the issue, please notify ALL of the services being restored and update your 'To Myself' email.
For any kind of backups, it is important to log a record on success so you can check for backups that have failed.
Without some kind of logging e.g. on a SQL database, on a txt file, on a SharePoint list, it is impossible to tell which backups have been completed or not. This applies to backups of any kind e.g. servers, personal computers, emails.
Some important stats to log:
- Date - Date backup has run
- Username - If a personal backup, which user was logged in when the backup ran
- PC Name - The name of the server (or PC) the backup came from
Having entries logged in a database is better than having an email sent because entries are easier to see and manage, and emails might get lost in the noise.
Now you are able to be aware of missing backups. You can make automatically notifications based on the above table e.g. by SQL Reporting Services data-driven subscription
It is also important to review the state of your backups at least on a weekly basis, ensuring that backups are not failing and that you are able to restore them when necessary. This is part of a good disaster recovery process.
To see the best backup tools currently available, check https://www.ssw.com.au/rules/pc-do-you-use-the-best-backup-solution
If you need any help with your backups or disaster recovery process, check https://www.ssw.com.au/ssw/Consulting/Backup-Recovery.aspx
The standard is to enforce policies based on reputable regulatory organizations (e.g. NIST, ACSC) latest recommendations.
When passwords have to be changed they should meet the following complexity requirements:
- Ignore password complexity (numbers, special characters, spaces) but require longer passwords - E.g. Require 16 characters length minimum, without special characters or numbers
- Longer passphrases are better than passwords - They are even more difficult to crack than complex passwords
- Longer password history remembered - E.g. Cannot use the last 10 passwords you already used
- Blocking of common password and words – E.g. Via Azure AD Password Protection
- Use of MFA (Multi Factor Authentication) everywhere possible
- Use a password manager
- Use different passwords for every service
- Enforce a lockout policy - E.g. If a user gets their password wrong 5 times, their account will be locked out for 15 minutes
Important: Requiring users to change their passwords (e.g. every 180 days) does not improve security. If you already have a strong password (as above) and a second factor of authentication (e.g. MFA), changing it does very little to make you more secure. Generally, you should change your password only when you believe it has been compromised.
You should protect your users and administrator accounts with more than one authentication method.
What is Multi-Factor Authentication (MFA)?
MFA is another layer of security for your users and administrators, it adds another code or approval that you can receive in a device that you possess - a phone, for example - to make it more difficult for attackers to steal your account. If they guess or brute-force your password, they still need the second code or approval to make it to your account.
Generally, every time you log in on a service, it will ask for your normal password and an additional code or approval. This can be retrieved through:
- RECOMMENDED - An authenticator app with passwordless (secure)
- An authenticator app with password (secure)
- A hardware token/key (secure)
- Email, SMS, or phone call (less secure)
MFA in Microsoft 365
If you have Microsoft 365 Premium, Azure P1 or higher licensing you should use Conditional Access to set up MFA - read more about conditional access here: Do you use Conditional Access policies?
Once MFA is set up, you can see which method your users are using - go to Azure AD | Security | Authentication Methods | User registration details.
- Under Default authentication method, you want to see Microsoft Authenticator app
- Under Methods Registered, you also want to see Microsoft Passwordless phone sign-in
Recovering your Authenticator App
Your Authenticator App becomes a critical part of your day and being without it can seriously hamper your ability to work. The following steps can ensure that if for whatever reason you lose your setup, your can get back up and running as quickly as possible.
- Ensure you are backing up your Authenticator App - For the Microsoft Authenticator app, you can find more details about setting up backup and all the gotchas to be aware of
- Ensure you have a Sign-in method other than your Authenticator App - Backups have a lot of gotchas so this is probably the most important thing you can do. Note that if you use email, it's important that you do not use the email associated with the sign-in. Better yet, investigate a security key like the YubiKey
Do you have Password Writeback enabled in your Entra Connect?
If you want to let your users reset their own, on-premises passwords directly from the cloud, you need to have Password Writeback enabled in Entra Connect!
You can read more about Password Writeback from the Microsoft Documentation: https://learn.microsoft.com/en-us/entra/identity/authentication/tutorial-enable-sspr-writeback
When setting up Entra Connect, you need to set the "Password Writeback" option:
Good Example: Setting up Password Writeback in Entra Connect
Microsoft Entra Privileged Identity Management (PIM) - formerly Azure Active Directory PIM enables a more secure, manageable and monitorable approach to assigning privileged permissions in your organization.
PIM enables just-in-time privileged access for users that are eligible for it, reducing the chance of privileged actions being done by malicious (or unaware) actors.
Things that we can do with PIM (taken from What is Microsoft Entra Privileged Identity Management?):
- Provide just-in-time privileged access to Entra ID and Azure resources
- Assign time-bound access to resources using start and end dates
- Require approval to activate privileged roles
- Enforce multi-factor authentication to activate any role
- Use justification to understand why users activate
- Get notifications when privileged roles are activated
- Conduct access reviews to ensure users still need roles
- Download audit history for internal or external audit
- Prevents removal of the last active Global Administrator and Privileged Role Administrator role assignments
Adding assignments in PIM
As best practice, your company should use PIM to give access to new SysAdmins.
Do the following:
- Go to PIM at https://portal.azure.com/#view/Microsoft_Azure_PIMCommon/ResourceMenuBlade/~/MyActions/resourceId//resourceType/tenant/provider/aadroles
- Go to Assignments | Add Assignment: ::: good :::
- Select Role | Select members | Next
-
Here, you have 2 options:
- Eligible: The member is eligible for activating the permissions, permanently or for a set period of time. Every time they activate, they will have the permissions for up to 8 hours, then they will lose it and will need to activate again. Activating is a manual process of going to PIM and clicking "Activate"
- Active: The member has the permissions active, forever or for a set period of time. They don't need to perform any manual steps to activate anything
-
Select the correct one | Add a justification | Assign:
You are now assigned roles in PIM.
Activating assignments in PIM
If you are eligible for assignments, you can activate them by doing the following:
- Go to https://portal.azure.com/#view/MicrosoftAzurePIMCommon/ResourceMenuBlade/~/MyActions/resourceId//resourceType/tenant/provider/aadroles
- Click on My Roles | Role | Activate: ::: good :::
- Go through the steps to add a justification and time you need that access for.
You now have that role active for you, for up to 8 hours.
Receiving PIM alerts on your email
PIM has built-in alerts that will send an email when assignments are activated, together with its justification, who activated it, the role activated, and extra information:
gMSA (Group Managed Service Accounts) are a secure and practical identity solution from Microsoft where services can be configured to use the gMSA principal and password management is handled by Windows - you don't need to worry about expired passwords anymore.
gMSAs are the superior option when it comes to security and flexibility. It should always be used, when possible, instead of user accounts, MSAs, security principals, service accounts (with manually managed passwords) and any other on-premises identity types.
The benefits of gMSAs
- Multiple servers - Services and tasks can be set and run across multiple servers, a necessity given the modern state of organizations today
- Automated password management - Passwords are automatically generated, rotated and handled by the OS
- Passwords are handled by the OS - When applications require a password, they query Active Directory. No human knows the password to that, making it much harder to be compromised
- You can delegate management to other administrators - Having the flexibility to delegate management can be incredibly helpful for ensuring there isn't just a single admin responsible for your service account security
There are some requirements and difficulties for using these kinds of accounts
- Support - The application/service must support gMSAs
- AD domain and forest functional level - Windows Server 2012 or newer
- KDC - Domain controller with Microsoft Key Distribution Service (KdsSvc) enabled
- PowerShell - To create and manage service AD accounts, you need to install the Active Directory module for Windows PowerShell
- Supported Windows versions - Windows Server 2012/Windows 8 or newer
- Services set up without gMSAs - Rebuilding or changing the service account in applications that already set up and running (e.g. Data Protection Manager, Azure AD Sync) might break these applications, so a full re-install might be necessary to use gMSAs instead of a simple user change
Set up gMSAs
Create the Key Distribution Service (KDS) Key
A one-time operation must be performed to create a KDS root key. Do the following:
- Login to your DC (Domain Controller) | run the PowerShell command:
Add-KdsRootKey –EffectiveImmediately
- Ensure the key has been created succesfully by running the following PowerShell:
Get-KdsRootKey
Create a gMSA
-
Login to your DC | run the PowerShell command:
New-ADServiceAccount [-Name] <string> -DNSHostName <string> [-KerberosEncryptionType <ADKerberosEncryptionType>] [-ManagedPasswordIntervalInDays <Nullable[Int32]>] [-PrincipalsAllowedToRetrieveManagedPassword <ADPrincipal[]>] [-SamAccountName <string>] [-ServicePrincipalNames <string[]>]
Here's how you should fill out each of the bracketed parameters:
- Name: The name of your account
- DNS Host Name: The DNS hostname of the service
- Kerberos Encryption Type: The encryption type supported by the host servers
-
Managed Password Internal In Days: How often you want the password to be changed (by default this is 30 days -- remember, the change is handled by Windows)
* note: This cannot be changed after the gMSA is created. To change the interval, you'll need to create a new gMSA and set a new interval.
- Principals Allowed To Retrieve Managed Password: These can be the accounts of member hosts, or if there is a security group that member hosts are a part of, you would enter them here.
- Sam Account Name: This is the NetBIOS name for the service if it's different from the account name.
- Service Principal Names: This is a list of the Service Principal Names (SPNs) for the service)
The final command could look like this:
New-ADServiceAccount -name gMSAAccount1 -DNSHostName gMSAAccount1.sydney.ssw.com.au -PrincipalsAllowedToRetrieveManagedPassword gMSAAccount1GroupWithComputerAccountsIn –verbose
Install a gMSA on the target server or workstation
- Login to the target server | run the PowerShell command to install the Active Directory PowerShell module:
Add-WindowsFeature RSAT-AD-PowerShell
- Run the PowerShell command to install the gMSA on the server:
Install-ADServiceAccount -Identity gMSAAccount1
- Check if the gMSA is isntalled correctly:
Test-ADServiceAccount gMSAAccount1
If the command returns True, everything is configured correctly.
You can read more about gMSAs here: https://docs.microsoft.com/en-us/windows-server/security/group-managed-service-accounts/group-managed-service-accounts-overview
In an IT industry, there should be a provision to RDP into servers or VMs to access them when needed. Within an organization, it is easier to remotely access laptops or computers connected to the same network.
To RDP, enable Remote desktop in settings How to enable Remote Desktop. Windows has Microsoft Remote desktop connection application inbuilt to RDP to another computer.
Drawbacks of using Microsoft Remote Desktop Connection
- Every time you need to RDP, you have to manually type the IP address or computer name
- List of IPs or device names is not available
Solution
Devolution is a secure website that offers a free Remote Connection Management called "Remote Desktop Manager", which is built to centralize all remote connections on a single platform that is securely shared between users and across the entire team.
Multiple computers can be remotely accessed at the same time and have a good GUI interface
To install the application, check devolutions.net
Managing multiple servers and computers located at different locations can be challenging, which is why remote access is often used as a solution. Remote access allows you to remotely log in to a system, making it easier to manage server maintenance.
Windows provides an inbuilt remote desktop connection that enables remote access to any computer or server within the network. In addition, there are third-party applications like Remote Desktop Manager, which can be useful for managing remote connections.
An alternative to RDM is Windows Admin Center (WAC), a web-based management tool designed to provide a centralized management console for multiple Windows Servers and computers. WAC offers a set of management features including performance monitoring, event log viewing, storage management, and PowerShell scripting - without needing to login to the server.
Unlike RDM, WAC can be installed on a server or client system and accessed remotely through a browser, providing a more user-friendly and secure solution for managing Windows systems. This makes WAC the better choice for organizations looking to simplify their management workflows and improve security.
Some of the key features of Windows Admin Center include:
- Server management: Windows Admin Center provides a unified dashboard for managing servers running Windows Server 2012 and later versions. Administrators can use Windows Admin Center to manage server roles and features, such as Active Directory, DNS, DHCP, and Hyper-V.
- Remote management: Windows Admin Center allows administrators to remotely manage servers, clusters, and HCI environments using a web browser. It provides a secure and scalable solution for managing servers from any location.
- Performance monitoring: Windows Admin Center includes built-in performance monitoring tools for monitoring system resources, such as CPU, memory, and disk usage.
- Backup and disaster recovery: Windows Admin Center integrates with Windows Server Backup and Microsoft Azure Backup to provide a centralized backup and disaster recovery solution for Windows servers and clusters.
- Security: Windows Admin Center supports role-based access control (RBAC) and multi-factor authentication (MFA) to secure access to servers and clusters. It also provides built-in security features, such as security baselines and security alerts.
Overall, Windows Admin Center provides a powerful and flexible management tool for Windows servers and clusters that simplifies administration, improves security, and enhances performance monitoring and management.
Windows Hello allows users to sign into their devices using facial recognition, fingerprint, or a PIN, instead of traditional passwords to authenticate quickly, accurately, and securely.
Windows Hello for Secure Authentication
Users have the option to set up a PIN, facial recognition, or a fingerprint for easy sign-in on their devices. This is specific to the device on which it is configured and may use a password hash based on the user's account type.
Here are some of the benefits of using Windows Hello:
- Stronger Security: Strong biometric authentication that is difficult to fake or duplicate, making it more secure than traditional password-based authentication.
- Convenient Sign-in: Users can sign in to their devices and accounts with a simple biometric gesture, such as a fingerprint or facial recognition, eliminating the need to remember complex passwords.
- Faster Access: Authentication is faster than typing in a password, enabling users to access their devices and accounts quickly and easily.
- Wide Compatibility: Works with a wide range of devices, including laptops, tablets, and smartphones.
- Local Storage: Biometric data is stored securely on the local device, so users can rest assured that their data is safe and not being sent to external devices or servers.
Windows Hello for Business
Windows Hello for Business is a Passwordless authentication method that allows users to sign in to their enterprise devices using biometric authentication, such as facial recognition or fingerprint scanning. It is configured by group policy or Intune, and always uses key-based or certificate-based authentication.
Before using Windows Hello for Business, you must ensure that the following requirements are met:
- The device must be running Windows 10 version 1607 or later.
- The device must have a compatible camera or fingerprint reader.
- The device must support the Windows Hello for Business feature.
- The user must have an Azure AD account and be registered for Windows Hello for Business.
Checking Usage
You can check Windows Hello for Business usage in the Microsoft Entra admin center - go to Microsoft Entra admin center | Identity | Monitoring & health | Workbooks | Authentication Prompts Analysis. From there, you can filter the report to only show Windows Hello authentication.
Filter the report to AuthMethod: Password and AppDisplayName: Windows Sign In to see who is not using Windows Hello to sign in.
You can also check Windows Hello Registration stats in Entra - go to Microsoft Entra admin center | Identity | Monitoring & health | Usage & insights | Authentication methods activity.
When you fix someone else's PC (locally or remotely), one of the best practices is always make sure it has the latest updates.
- To achieve this, we run Windows Update and install all latest updates.
Warning: Of course if you are fixing a bug on someone’s PC, you should only update one piece of software at a time, so you know if an update fixes the problem. After that (if the company allows it), update all software to the latest version. If they get a new problem, then rollback.
It is important that the system administrator can easily find out how reliable his servers are. This can be achieved using tools like What's Up Gold (WUG) https://www.whatsupgold.com to monitor many statistics e.g.:
- Uptime - Ping, Interface monitor
- Performance - RAM usage, CPU usage
- Network - Bandwidth, Interface throughput
- Storage - Disk usage, health
For example, here is a report in WhatsUp Gold you can use to monitor servers on a daily basis.
Another option is to use WUG's built-in email alerts, which can be formatted in HTML or plain text. You can also add variables that change based on the current state of devices and other stats.
The best option is to use SQL Reporting Services to create a custom report that can be emailed via a data-driven subscription, which sends a nicely formatted email when there's a problem.
Do you know if your computer should be joined to the domain or not?
Joining your company's domain is a trade-off:
Option #1: If you join the domain, the company is the one responsible for managing your device, so all company rules and policies will be applied to it (Windows Update frequency, users, password resets, etc) and you will need to go through your SysAdmins if you have troubles with it.
Option #2: If you choose to not join the domain, the PC management is all yours, giving you more freedom, but any automatic scripts would need to be done manually.
Below are the pros and cons of joining the domain:
Area Pros (+) Cons (-) PC Management Client management through GPOs (Group Policy Objects) Lack of freedom/autonomy Resource Access Direct access to resources (e.g. fileserver) Needs to sign in first, or be attached to a VPN or the network to access resources Automatic Scripts GPOs apply automatic scripts like the Login Script and Backup Scripts Need to run Login and Backup scripts manually Support Level More support available from your SysAdmins, you have someone to rely on for any troubleshooting on all computer applications Less support available from SysAdmins, you can run any obscure application on your computer that may not be supported by your company Occasionally, one server and its drives will not have sufficient space to store all related files in a network share. For example, you may have a "SetupFiles" directory that stores all Setup executables on your network e.g. \bee\SetupFiles. There are problems with this approach.
- You will run out of space - which means you will have to copy or move old (but still used) setup files around to other drives (\bee\d$\SetupOld\ ) or other machines e.g. \tuna\SetupFiles. This fragmentation of your setup files can cause confusion for your users.
- When you retire or rename the old server, links to the old server location will not work
So how do you get around this problem? The answer is in the Distributed File System (DFS). Instead of having several server-specific file share locations, you can have a domain-wide setup location that offers a seamless experience to your users. DFS will even track a history of when and where file locations were moved.
At SSW we have moved away from paid certificates for our websites and web apps. We now use Let's Encrypt managed by Certify The Web.
Previously the way we managed our certificates was using a SharePoint list as well as calendar reminders to inform us when they were going to expire. The issue with using this system is the SharePoint list as well as ensuring the certificates remained up to date was a manual process. This left a lot of room for human error especially when managing hundreds of certificates. There are of course commercial solutions to manage certificates but these haven't been econmical for our environment.
With Certify the Web and Let's Encrypt, we remove this human error and manual handling, ensuring that our certificates never expire.
You should use Certify the Web.
What is the best option for your business when it comes to securing your website with HTTPS?
When you create a website, you can only access it through HTTP (http://), and not securely through HTTPS (https://) if you do not own an SSL Certificate.
When it comes to website certificates, you can choose from free or paid SSL certificates!
Free certificates can be obtained from Certificate Authorities like Let's Encrypt, which is helping provide free and automated certificates for the web.
Free certificates:
- provide the same level of SSL encryption as paid certificates;
- provide HTTPS with a green padlock on the address bar of your browser, just like paid certificates;
- can be automatically renewed easily, through programs like Certify The Web or win-acme
Why would anyone use paid certificates, then?
If you are operating a big business, paid certificates give you some more assurances over free ones, and you can obtain them through reputable Certificate Authorities like Comodo, GeoTrust, Symantec, etc:
Paid certificates:
- gives you warranty against misuse or wrongly issued certificates;
- are normally valid for at least 1 year or more, while free certificates are only valid for 3 months;
- offer support for any errors or problems you have with your certificates.
SSL Certificates are an important part of any reputable website, so if you are operating a small website, blog, testing environment, personal site, anything that doesn't need too much support, getting a free certificate is the way to go.
If your business or site does not fit on the above affirmation, getting a paid certificate is the best option!
Wireless networks are everywhere now. You can't drive down the street without finding a network which is insecure. However, in an office environment, there is a lot more to lose than a bit of bandwidth. It is vital that wireless is kept secure.
WEP, No SSID broadcast, allowed MAC addresses are all OK but these are more home security.

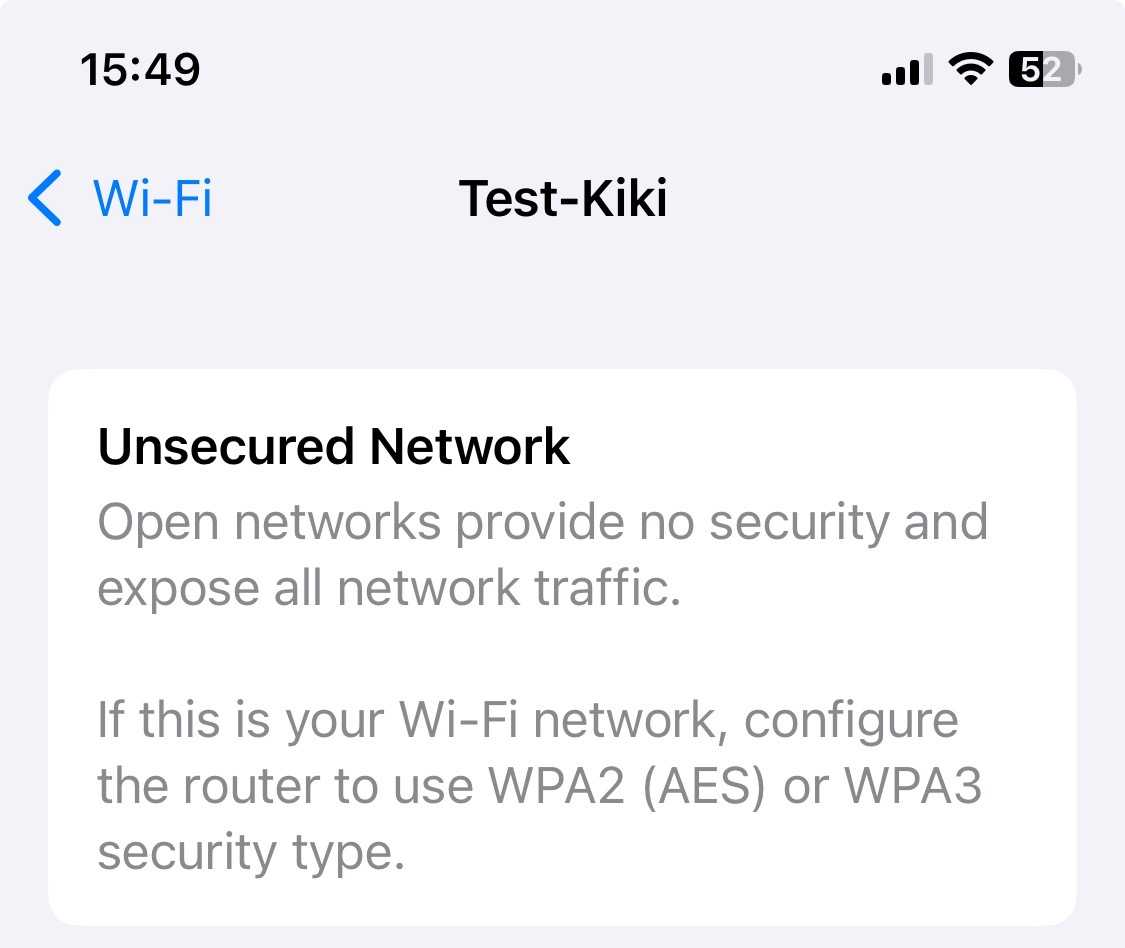

Figure: Bad example - the above settings are not suitable for a company's wireless access point
For the office, you need something a bit more robust and not requiring much management overhead.
It is recommended to use Radius authentication to integrate with your Active Directory.

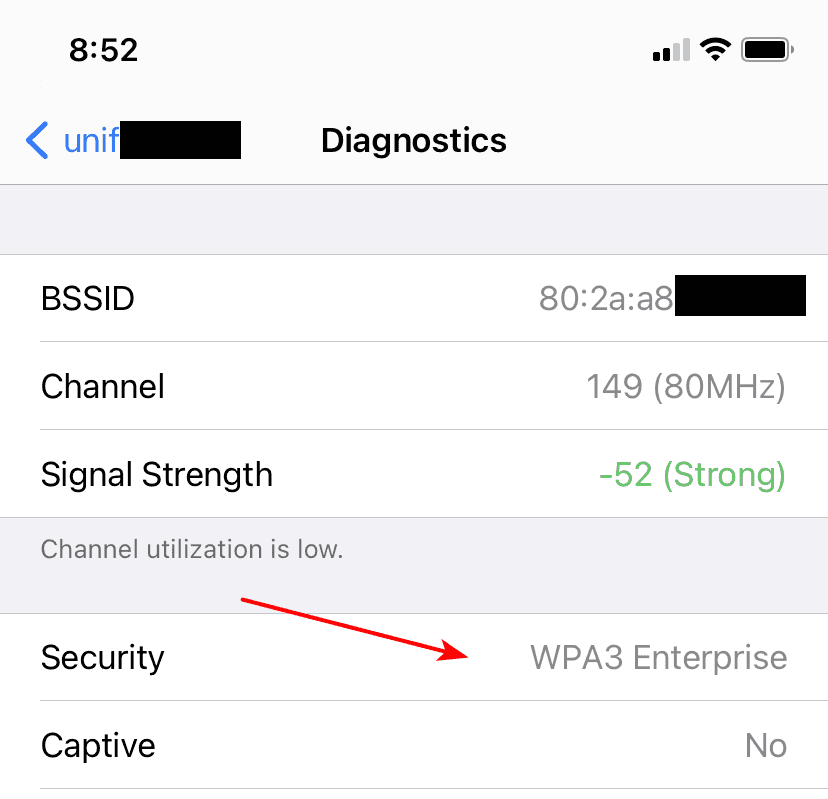

Figure: Good example - configure your wireless access point to authenticate against AD
This article explains how to setup your wireless AP to use WPA2-enterprise. WPA2-Enterprise verifies network users (AD a/c's) through a server (Domain Controller).
The recommended method of authentication is PEAP (Protected Extensible Authentication Protocol), which authenticates wireless LAN clients using only server-side digital certificates (In our case we used an AD CA) by creating an encrypted SSL/TLS tunnel between the client and the authentication server. The tunnel then protects the subsequent user authentication exchange.
Requirements:
- 802.1X-capable 802.11 wireless access points (APs)
- Active Directory with group policy
- Network Policy Server (NPS) servers
- Active Directory Certificate Services based PKI for Server certificates for NPS computer/s and your wireless PC's
Assumptions:
This document assumes you have some knowledge of how to configure your wireless access points and install server roles. It also assumes that you have already configured an Enterprise Certificate Authority on your Active Directory Domain.

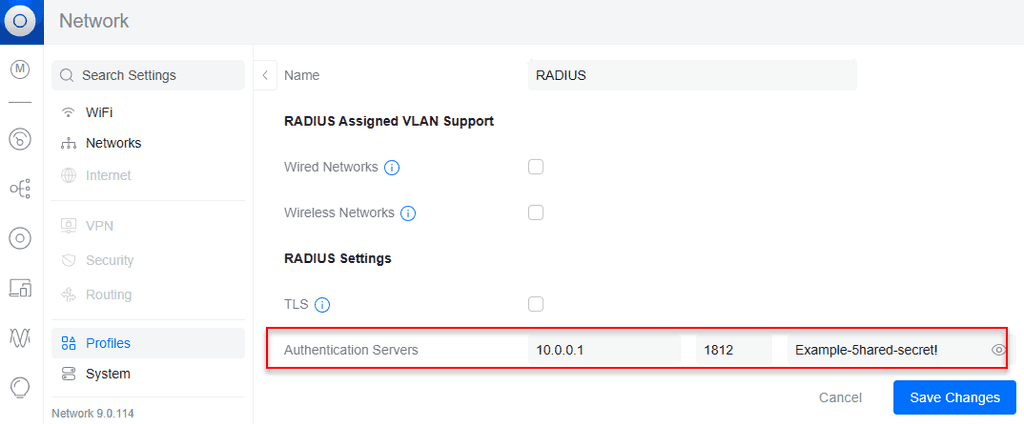

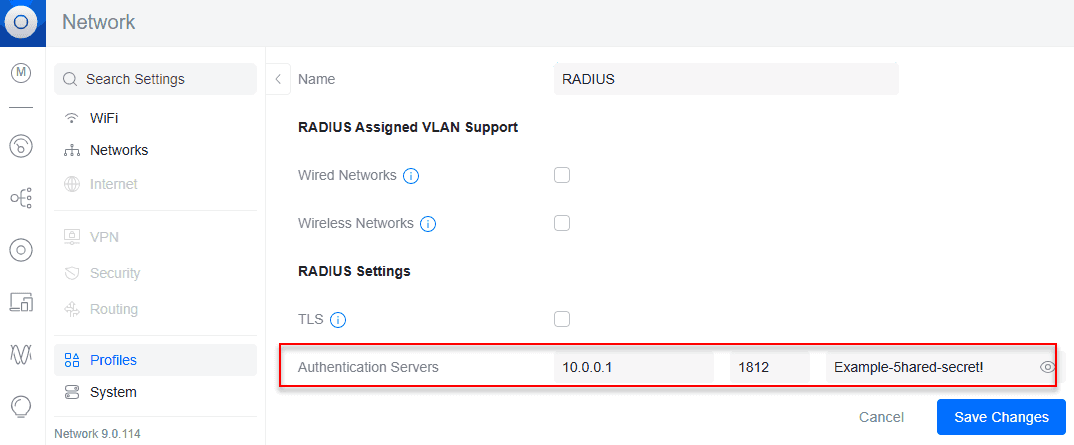

- Configure your wireless access points In SSW we use Unifi APs. I have configured these access points to:
-
Install NPS on your server On Windows 2008 or 2008 R2 open up the server manager and:
- Add the "Network Policy and Access Services" Role Under role services add:
- Network Policy Server
- Routing and Remote Access Services
- Configure Radius Clients on NPS Open up the NPS Console. Right click on "Radius Clients", and then click on "New". Fill out the fields for Friendly Name (enter the name of the wireless access point), Address (IP address) and then add the shared secret (Keep this safe for example we use Keepass as a password repository) you configure on your access point.
-
Configure 802.1x on the NPS server In the NAP servers Server Manager, open "Roles", then "Network Policy and Access Services" then click on NPS (Local). In the right-hand pane under standard configuration choose "Radius Server for 802.1x Wireless or Wired Connections", and then click on "Configure 802.1X" to start a wizard-based configuration.
- Select the top radio button “Secure Wireless Connections" click next
- On the Specify 802.1X Switches Page check the AP's you have configured under Radius Clients are in that list then click next
- Now the authentication method. From the Drop Down lists select Protected EAP (PEAP) NOTE: This method requires a Computer Certificate and the Radius Server and either a computer or user certificate on the client machine
- Select the groups (eg. Domain\WirelessAccess) you would like to give wireless access to. You can do this by user or computer or both
- If you need to configure VLan's in the next step, wasn't required in my case I just used the defaults
- You then need to register the server with Active Directory. So right click on NPS (local) and select Register Server in Active Directory
-

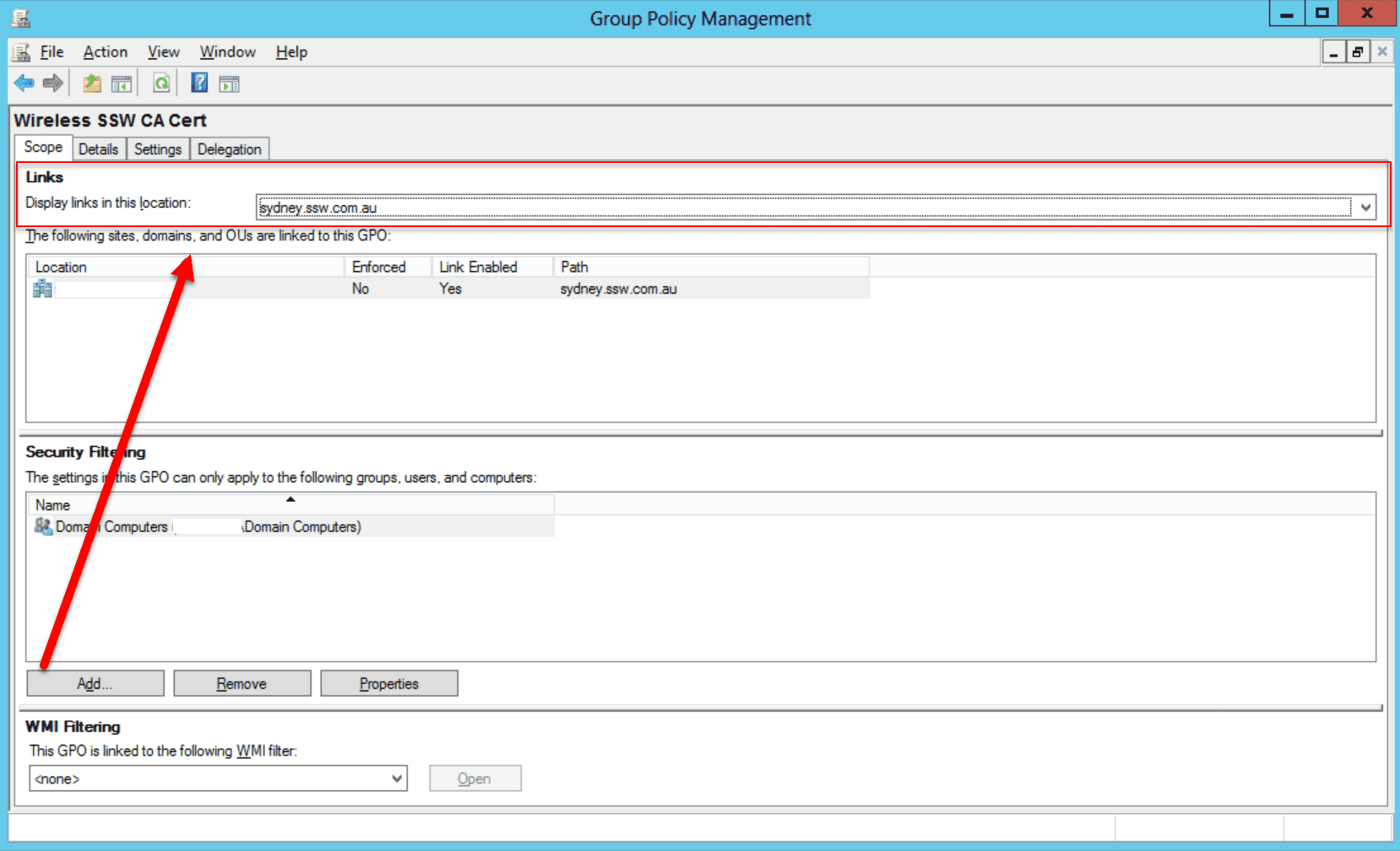

Configure Certificate Auto enrolment First open Group Policy Management.
- Create a new GPO policy and name it "CertEnrollmentWireless" or whatever name you deem suitable and link it to the root of the domain or a specific OU depending on your needs and OU structure

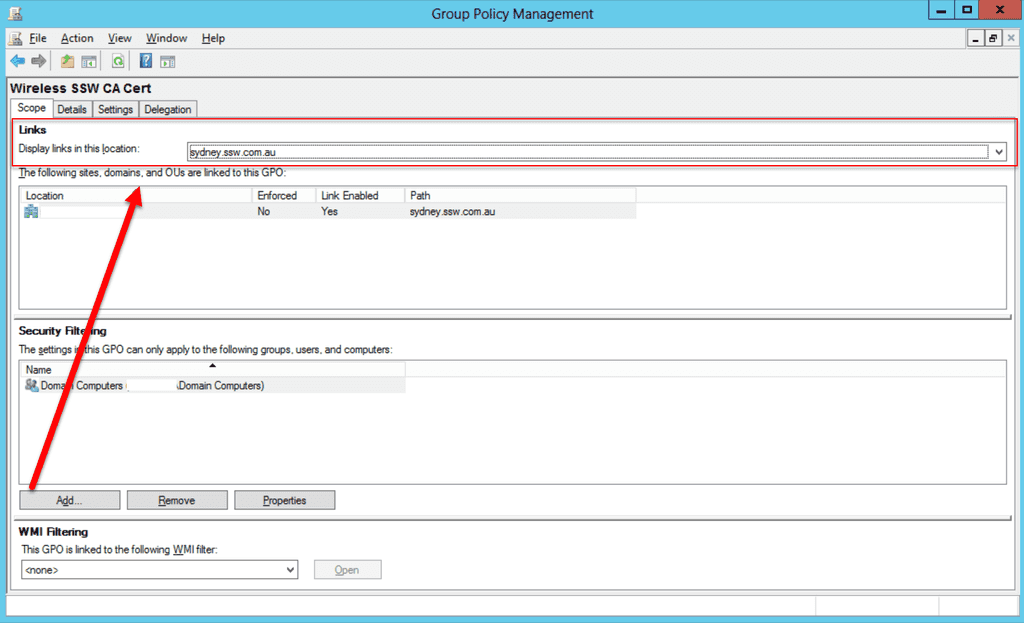

- Under the security filtering scope for what the policy gets applied to remove "Authenticated Users" and add your AD created. This ensures that the policy, once configured, is applied only to members of those groups.

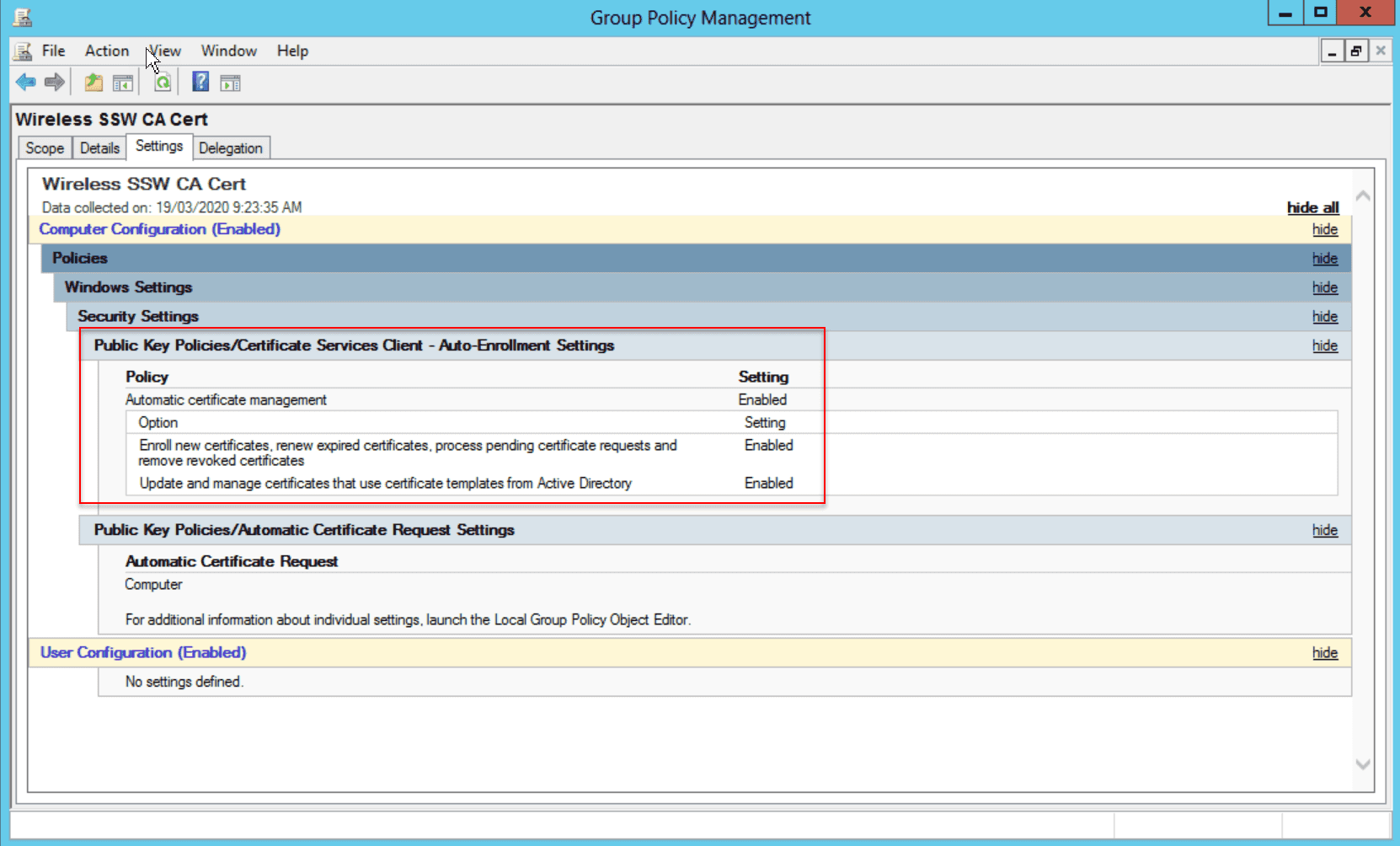

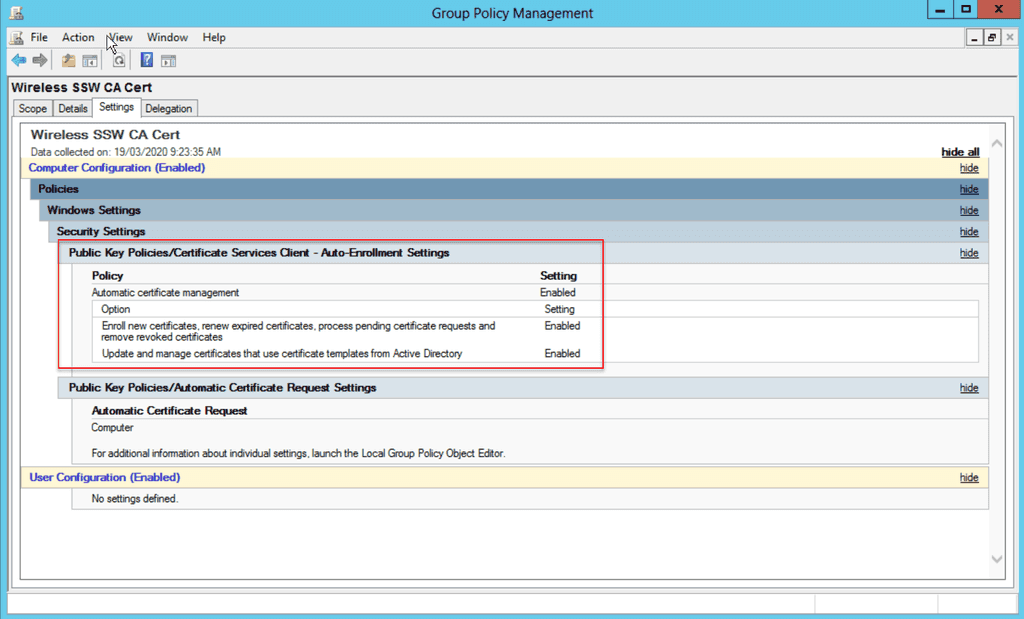

- Edit the settings of the group policy and go to:
- Computer Configuration\Policies\Windows Settings\Security Settings\Public Key Policies In the details pane, you need to right-click the Certificate Services Client – Auto-enrolment and then select properties. In the Properties, dialog box select enabled from the drop down box and then place a tick in all the remaining tick boxes. This makes sure that the computer auto-enrolls for a certificate from AD CA.
- Now navigate to Computer Configuration\Policies\Windows Settings\Security Settings\Public Key Policies\Automatic Certificate Request Settings Right-click in the details pane and select New | Automatic Certificate Request. This will open up a wizard and you can select a Computer Certificate.
-

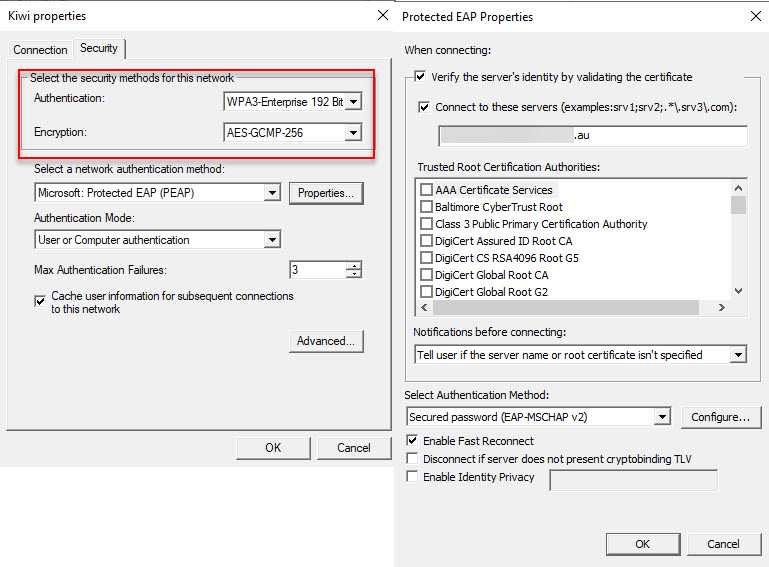

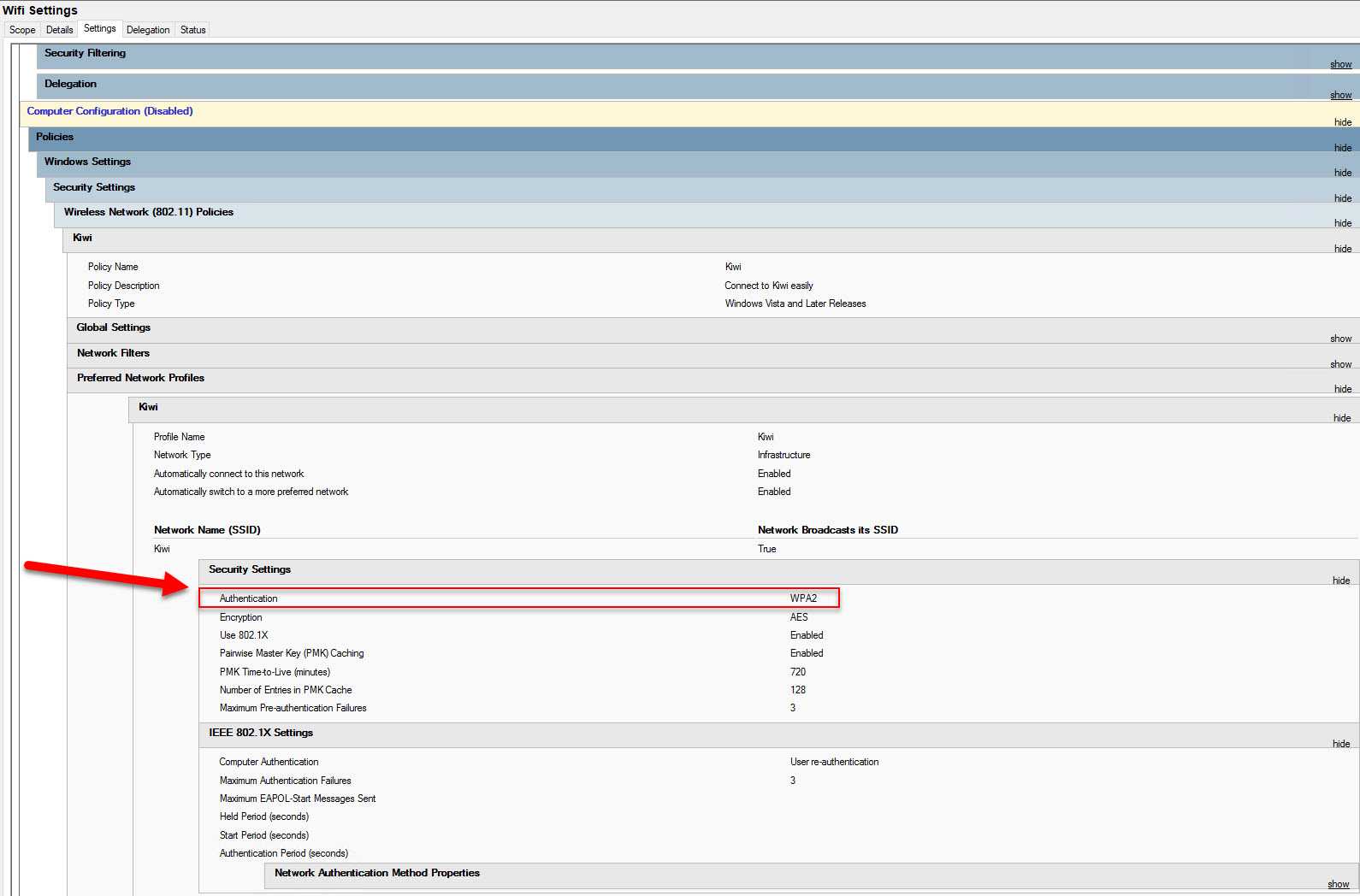

Creating a Windows Wireless 802.1x GPO Policy
- Now go to Computer Configuration\Policies\Windows Settings\Security Settings\Wireless Network (IEEE 802.11) Policies Right click and Create a new policy for Windows Vista and later (if you only have XP machines, do only an XP one). If you have Vista or later you must do a Vista policy or else Vista will try to use the XP policy (not recommended).
- Enter a Policy Name (e.g. BeijingWifiSettings) and description and link to the root of the domain.
When guests come to an SSW Office, we provide them with easy Wifi access using a QR code. This saves people manually typing in a password and can have them up and running in a matter of moments.QR codes can easily be created with services like QR Code Monkey.
How often do you find files on your network file server that clearly shouldn't be there? Developers are notorious for creating temporary files and littering your file system with them. So how can you identify exactly who created or modified the file, and when?
The easiest way is to configure Windows file auditing .
Thankfully, Windows Server come with built-in file auditing. Any changes create and delete can be logged to your system event log. Here's how to set it up.
How to implement auditing on your file server
- Terminal Server into the file server
- In Windows Explorer, locate the directory you want to configure logging for (e.g. C:\Inetpub\wwwroot for logging changes to your website files)
- Select Security tab | Advanced
- Click the Auditing tab
- Select the users whose usage you want to monitor (usually all users, so select Everyone )
- Select what you want to monitor. For best performance, we only tick the options in shown in the figure below - there's no need to log when someone opens a file.
- Click OK and OK again to apply the changes. The process may take some time depending on the number of subfolders and files selected. Now you need to configure the system event log.
- Open Control Panel->Administrative Tools->Event Viewer
- Right-click the Security node and Control Panel | Administrative Tools | Event Viewer
- Right-click the sure Overwrite events as needed is checked
Checking who created the file
Now test to see if auditing is working.
- On the server, create a file called "test.aspx" somewhere in the path that is being audited
- Open Control Panel->Administrative Tools->Event Viewer
- Select the Security node, and notice the entries that have been created. They will have a similar format to the figure below.
That's all! It is also great for finding out who accidentally deleted files from the file system.
Furthermore, we can dump the event log to an Access or SQL Server database to make it easier to handle. Here is how to do it:
- Download the scripts: one for Access database and the other for SQL Server.
- Find and change the strEventDBConn variable to your connection string, also, modify strEventDB and tblEvents variable to your database name and table name.
- Write down the names of the servers to monitor in EventHosts.txt.
Done, now you need only double-click to start it.
A company-wide Word template brings many benefits e.g.:
- Consistency - It's important to maintain consistency on documents internally and for clients
- Automatic footers and headers - Showing the latest edit time and who the editor was, updating automatically on save
- Branding - More and better branding and correct company colors
How to have a company-wide Word template:
- Modify your Normal.dotm file to have the headings and format that you want for Word document
- Create standard employee email footer files e.g.
JamesZhou.htm
orJamesZhou.txt
- Put the files on a network location - this is the place that will have the master copies
- Have a logon script which is set up through Group policy that will copy the file to the users' computer when they logon
ECHO Copy Office Templates To Workstation >> %LogonLogFile% call %ScriptFolder%\SSWLogonScript\BatchScript\SafeCopyNewerFile.bat "\\fileserver\DataSSW\DataSSWEmployees\Templates\Normal.dot" "%APPDATA%\Microsoft\Templates\Normal.dot" %LogonLogFile% call %ScriptFolder%\SSWLogonScript\BatchScript\SafeCopyNewerFile.bat "\\fileserver\DataSSW\DataSSWEmployees\Templates\Normal.dotm" "%APPDATA%\Microsoft\Templates\Normal.dotm" %LogonLogFile% call %ScriptFolder%\SSWLogonScript\BatchScript\SafeCopyNewerFile.bat "\\fileserver\DataSSW\DataSSWEmployees\Templates\ProposalNormalTemplate.dotx" "%APPDATA%\Microsoft\Templates\ProposalNormalTemplate.dotx" %LogonLogFile% call %ScriptFolder%\SSWLogonScript\BatchScript\SafeCopyNewerFile.bat "\\fileserver\DataSSW\DataSSWEmployees\Templates\NormalEmail.dot" "%APPDATA%\Microsoft\Templates\NormalEmail.dot" %LogonLogFile% call %ScriptFolder%\SSWLogonScript\BatchScript\SafeCopyNewerFile.bat "\\fileserver\DataSSW\DataSSWEmployees\Templates\Microsoft_Normal.dotx" "%APPDATA%\Microsoft\Templates\Microsoft_Normal.dotx" %LogonLogFile% call %ScriptFolder%\SSWLogonScript\BatchScript\SafeCopyNewerFile.bat "\\fileserver\DataSSW\DataSSWEmployees\Templates\Blank.potx" "%APPDATA%\Microsoft\Templates\Blank.potx" %LogonLogFile% xcopy /Y "\\fileserver\DataSSW\DataSSWEmployees\Templates\NormalEmail.dotm" "%APPDATA%\Microsoft\Templates\" >> %LogonLogFile% xcopy /Y "\\fileserver\DataSSW\DataSSWEmployees\Templates\NormalEmail.dotx" "%APPDATA%\Microsoft\QuickStyles\" >> %LogonLogFile% ECHO Templates Copied
Figure: Bad example - This is a snippet of an old login script
You can automatically have your SSW Word doc template on sign-in via a script. E.g. PowerShell login script.
Good example - New Login script on Github
Note #1: We don't want people using .RTF emails.
Note #2: If you use a Mac computer, a login script will not work. In order to use a Word template, you must open the template on Word locally, hit "Save as Template", and then upload that document to Teams.
Most companies have physical assets and it is crucial to keep track of those assets: Are they in a particular location? Who are the assets with? Are they assigned somewhere else?
Businesses generally need to provide their employees with a multitude of assets. E.g.:
- Keyboards
- Mouses
- Laptops
- Workstations
- Mobile Phones
Keeping track of those assets is essential for the business to have any control over them, and having a spreadsheet with values for the assets and all that is not the best approach.
In our day and age, we have better (and free!) systems that allow us to track the businesses' assets, including:
- Purchase Date
- Order Number
- Serial Number
- Model
- Which location that asset belongs to
- Which user that asset belongs to (or is in possession of/checked out to)
- Number of assets
- And even their depreciation value
All this in a nice UI that allows for you - or even your user themselves - to edit and check out assets.
Tracking is all fun and games, but what about knowing which asset is which? You also need to physically label your assets.
This means that after creating the asset in the system, it generally gets a unique ID within it, and you should generate a label (preferably with a QR or bar code for easy scanning) and attach the label to the asset in question. This makes it super easy to see the asset ID and name at a glance, and, in the case the asset is lost somewhere, anyone can easily scan the QR code and be brought to a site with instructions on how to return or notify the company that asset is lost.
There is a couple of exceptions to the above:
- When the items are physically small and can't have a tag on them you shouldn't put one on.
- When the items are too cheap they don't need to be individually tagged, having the total number + the number of items checked out to people is enough.
A good system that does all this is SnipeIT. It has a nice interface, easy to use, maintain and upgrade. SnipeIT also generates labels for you, wiht an API to integrate with your current systems. It is free if you host it yourself!
When you are connected to the company's network, you should complete the following procedure if you want to setup a printer server.
For Windows Server
Steps to add a printer to Active Directory:
- In Windows Run | Type "printmanagement.msc" | Hit Enter
- Right-click 'Print Server' | Choose 'Add/Remove Servers' | Add IP address or computer name | Finish
or
Right click the 'Print Server' | Add printer | Choose the best option (e.g TCP/IP) | Put the IP address of the Printer | Finish
- Add DNS entry for your print server (e.g \printer) to make it friendly for the users to find
Note: Another method is using a Universal Printer in Azure https://azurescene.com/2020/04/10/how-to-configure-universal-print/
Finding the Printers
Now your users can find the printers by doing the following:
- In the File explorer | Type \printer on the address bar to show all the printers connected to the server
- Double click on your printer name to connect/add it. Follow prompt to finish the printer driver installation
To keep your systems secure, it is important to make sure everything is kept up to date - the OS, and any installed apps.
Updating everything manually is time consuming, and it can be easy to miss patches without an automated system.
WSUSis a great way to keep Microsoft operating systems and products up to date. It can be painful to manage, but with a bit of work it is a great tool. The only issue is that it cannot be used to manage any non-Microsoft apps. If your environment is big enough, you can use Configuration Manager (formerly SCCM) for 3rd party apps - but it is not worth setting up for smaller environments.
This is where other Patch Management solutions come in. There are many options out there, including:
-
ManageEngine Patch Manager Plus - RECOMMENDED
- Good, transparent pricing $$
- Long list of supported applications
-
- More expensive $$
-
- Good pricing $$
- Needs more supported applications
These products have varied pricing options, including some free options with limitations on the number of devices and/or users. These solutions could be used alongside WSUS, but they do support Microsoft updates as well as 3rd party apps - so they can replace WSUS altogether.
The main benefits of patch management solutions are:
- Automatic installation of Windows updates (with or without rebooting)
- Automatic installation of third-party updates
- Manual deployment of patches without RDP access to the computer/s
- Reporting - lots of information about installed or missing patches, and vulnerability levels
You should consider when to automatically install updates - of course, it needs to be a time that will cause minimal disruption, but it should also be a suitable amount of time after the updates are released in case there are any issues. Microsoft updates are released on the 2nd Tuesday of every month - known as Patch Tuesday - so you might choose to install the updates a week or two after this date.
These patch management solutions also include a bunch of other useful features, such as the ability to deploy scripts or configure settings remotely.
-
To ensure that developers have a clear understanding of how permissions are granted, it's important to educate them on the process.
User sends an email with a task to grant access to a resource and SysAdmins grant it. A developer wouldn't know how a SysAdmin granted the permission.
As a SysAdmin, call a developer on Teams and share the screen to show how you would grant permission to a resource. Warn them before calling as per Calling - Do you warn then call?
Steps to effectively educate your developers
- Start by explaining the importance of granting permissions correctly and securely.
- Show developers how to navigate to the appropriate access control section in the relevant platform (e.g., Azure, AWS, SharePoint).
- Demonstrate how to select the specific resource or application for which permissions need to be granted.
- Emphasize the principle of least privilege and guide developers on granting only the necessary permissions.
- Provide examples of common scenarios where specific permissions are required and explain how to grant them.
- Encourage developers to ask questions and seek clarification during the process.
Of course, all your servers are on UPS - Uninterruptible Power Supply. If not they should be!
How do you know that all the money you paid for a UPS was worth it? How many times has it saved our servers? How long do the batteries last for before they go flat? Why was a server off when you came in in the morning?
A UPS is a device that provides backup power to your servers and other critical equipment in the event of a power outage. It ensures that your systems can continue to operate for a short period, allowing you to save work and safely shut down equipment if necessary. UPS units also protect against power surges and other electrical disturbances.
If you get your UPS to email you when an event occurs then you will have answers to these questions.The problem is that there is no uniform software that will work with all UPS's as they all have their own format.All UPS's come with management software or hardware that can perform these actions. You just need to set it up.
For example, your company might use APC UPS' and they have physical management cards (hardware), which are able to send emails. The event categories are "severe", "warning" and "informational".
When you have multiple ongoing projects with people moving in and out of project teams, you can end up with too many people in the related groups - especially if you are using public Microsoft 365 groups that anyone in the organization can join.
With Access Reviews, you can automate cleaning up these groups and make sure only the right people have ongoing access.
Why use Access Reviews?
In today's digital landscape, ensuring the right people have the right access to resources is paramount. Over time, as employees change roles, projects evolve, or external collaborators come and go, permissions can become outdated. This can lead to excessive access rights or, conversely, insufficient access, both of which pose risks. Excessive access can open doors to potential security breaches, while insufficient access can hinder productivity.
"Entra Access Reviews" provides a systematic way to review and validate user access rights regularly. By conducting periodic access reviews, organizations can identify and rectify any inappropriate permissions, reducing the risk of unauthorized access or data breaches. Moreover, it ensures that users have the necessary access to perform their roles efficiently. Access reviews also support compliance efforts, as many regulatory frameworks require periodic reviews of access rights. With "Entra Access Reviews", organizations can automate this process, ensuring a consistent, auditable, and efficient approach to maintaining secure and compliant access controls.
User Experience During an Access Review
When it's time for an access review, users receive a notification prompting them to validate their access rights. This user-friendly process is designed to be intuitive, guiding users step-by-step through the review of their permissions. They'll see a clear list of the resources they currently have access to and will be asked to confirm if they still require that access. This self-review empowers users to be part of the security and compliance process, ensuring they only have access to what they genuinely need. The interface is clean and straightforward, minimizing any potential confusion. Below is a screenshot that provides a glimpse into what users see during this process:
Creating an Access Review
- Go to the Azure Portal | Identity Governance | Access Reviews
- Click + New Access Review
- Under Select what to review, choose Teams + Groups
- Under Review scope, choose Select Teams + Groups
- Click on + Select groups and choose the group you want to review
- Under Scope select All users
- Click Next: Reviews
- Check the Multi-stage review box
- Under First stage review | Select reviewers, choose Users review their own access
- Select a stage duration (default is 3 days)
- Under Second stage review | Select reviewers, choose Group owner(s)
- Select a stage duration again (default is 3 days)
- Under Specify recurrence of review, select a Review recurrence and Start date
- Under Specify reviewees to go to next stage, choose Approved reviewees
- Click Next: Settings
- Under Upon completion settings, tick Auto apply results to resource
- Under If reviewers don't respond, choose Remove access
Under Advanced Settings
- Turn off Justification required
- Under Additional content for reviewer email, add an explanation so there's no confusion over what this email is.
- Click Next: Review + Create
- Under Name new access review, add a name and description
- Review the details and click Create
The Results
At the end of the review we get to see the results
With more companies adopting BYOD policies, it is important for SysAdmins to be able to connect to Remote Server Administrative Tools (RSAT) like Active Directory Users and Computers (ADUC) in a secure way, even if their computer is not connected to the domain.
Note: You should make sure any personal devices connecting to your network are secure, with Intune or a similar solution.
RDP to the domain controller (don't do this!)
The least secure way is to use Remote Desktop Connection to make changes directly on the domain controller. Domain controllers should be locked down to only accept log ins from domain admin accounts - and should only be used when changes require these credentials.
Another option is to connect to a different computer or server that is on the domain, like a jump box. This is a more secure solution, but for many companies it adds infrastructure that is not necessary.
Windows Admin Center
Microsoft have a browser-based server management tool called Windows Admin Center. It is very useful for managing servers, and it can also be used to manage your AD environment - as well as DHCP, DNS and other Windows Server services.
Since the tool is browser-based, you only need to allow access to one port for HTTPS communication.
Read more about Windows Admin Center here: Do you use Windows Admin Center?
Running RSAT from a non-domain joined computer
While Windows Admin Center is a great solution, many SysAdmins prefer the extra functionality and classic interface of RSAT (Remote Server Administration Tools) in MMC (Microsoft Management Console) that you can easily run from a domain joined computer.
You can also use this if you have a domain-joined computer, but you need to use a different account to the one you log in with to access RSAT.
To get RSAT connected on a non-domain joined computer, there are some extra steps:
- Make sure you have the RSAT features you need: Install RSAT Features
- Run Command Prompt as Administrator
-
Run this command to open an empty MMC window (replace admin@domain):
runas.exe /netonly /noprofile /user:"admin@domain" mmc.exe
- Go to File | Add/Remove Snap-in... to add the tools you need, e.g. ADUC, DHCP, DNS, GPO Management
-
For ADUC (and possibly other tools), you will need to specify the domain to connect to. Make sure you tick the box Save this domain setting for the current console.
- Go to File | Save As... and save the console somewhere appropriate, e.g. C:\work\rsat.msc
-
Create a batch file with this command - similar to the command above, but we specify the .msc file to use:
runas.exe /netonly /noprofile /user:"admin@domain" "mmc.exe "C:\work\rsat.msc""
- Save the batch file and run it as administrator.
- Your MMC window will open with your snap-ins ready to go!
Have you been in a scenario when you look at a website in your phone and it works. Meanwhile, one of your colleagues is looking at it in their PC and they get a response saying this site doesn't exist. That's probably a DNS (Domain Name System) issue.
DNS is akin to the internet's phonebook. It's easy to remember a website's name, like
www.ssw.com.au
, but computers and networks need numerical IP addresses to access websites. DNS translates human-readable domain names to machine readable IP addresses.DNS explained
Video: Everything You Need to Know About DNS (5 min)Understanding DNS is crucial for troubleshooting connectivity issues, optimizing network performance, and ensuring secure internet navigation
When you type
www.ssw.com.au
into your browser, the process to translate this human-readable domain name into a machine-readable IP address involves several steps and servers in the Domain Name System (DNS). Here's a detailed breakdown:- Domain Name Input - You enter
www.ssw.com.au
into your web browser. - Browser Checks Cache - First, your browser checks its own cache to see if it has recently resolved the IP address for
www.ssw.com.au
. If it finds the IP address there, it skips the remaining DNS steps and proceeds to connect to the web server. - Operating System Cache Check - If the browser cache doesn't have the IP address, the query moves to the operating system's DNS cache. If the operating system (OS) has the IP address cached, the DNS lookup process stops here, and the browser uses this IP address. If not, the process moves to the next step.
- DNS Resolver Query - The query is sent to a DNS resolver, typically operated by your Internet Service Provider (ISP). The resolver checks its cache; if the IP address is there (and still valid based on its TTL), the process ends, and the IP is returned to your browser. If not, the resolver queries a root nameserver.
- Root Nameserver Query - The DNS resolver contacts one of the root nameservers. The root server doesn't know the IP address for
www.ssw.com.au
but knows where to direct queries for.au
domains. It responds with the address of the TLD nameserver for.au
. - TLD Nameserver Query - Next, the resolver contacts the
.au
TLD nameserver. This server manages information for.au
domains but doesn't store individual IP addresses. Instead, it knows which authoritative nameserver handlesssw.com.au
. It responds with the address of this nameserver. - Authoritative Nameserver Query - The resolver then queries the authoritative nameserver for
ssw.com.au
, which has the actual IP address forwww.ssw.com.au
. This server responds with the IP address of the web server hosting thessw.com.au
site. - Resolver Caching - The DNS resolver caches the IP address of
www.ssw.com.au
with the corresponding TTL. This caching helps speed up future requests to the same domain. - Browser Connection to Web Server - With the IP address now known, your browser can establish a connection to the web server hosting
www.ssw.com.au
. It sends an HTTP request to the server asking for the web page associated withwww.ssw.com.au
. - Web Server Response - The web server processes the request and sends the requested web page back to your browser, which then displays the content to you.
Each of these steps involves complex interactions between your computer, various DNS servers, and the final web server hosting the content you wish to access. This process, although it might seem lengthy, happens within milliseconds, allowing for the quick loading of web pages.
Image source: ByteByteGo's DNS Video
Hierarchical Structure of Domain Names
Domain names are structured hierarchically, with the right-most component being the top-level domain (TLD). In the domain name
www.ssw.com.au
:.au
is the country-code top-level domain (ccTLD) for Australiacom.au
is considered a second-level domain within the.au
ccTLD. It's commonly used by commercial entities in Australiassw.com.au
is a domain registered by an entity (in this case, SSW) within thecom.au
spacewww.ssw.com.au
includes a subdomain (www) of thessw.com.au
domain
How DNS Knows
com.au
is a TLDIn essence, DNS doesn't treat
com.au
as a single TLD but rather as a combination of a second-level domain (com
) under the.au
TLD. The distinction comes from the DNS hierarchy and the namespace management:- Root Nameservers: At the top of the DNS hierarchy are the root nameservers. They have the information necessary to direct queries to the TLD nameservers.
- TLD Nameservers: Each TLD, like
.com
,.net
,.org
, or a country-code TLD like.au
, has its own nameserver(s). When a query reaches this level, the TLD nameserver directs the query to the appropriate second-level domain nameserver, if applicable. - Registry and Registrar: The registry for a TLD manages the domain names within that TLD. For example, the registry for
.au
manages all domains ending in.au
, includingcom.au
,org.au
, etc. When someone registers a domain likessw.com.au
, they are registering a second-level domain within the.au
TLD. The registry ensures that each domain name is unique within its namespace. - Authoritative Nameservers: For a given registered domain, like
ssw.com.au
, there are authoritative nameservers that know the IP addresses for subdomains (likewww.ssw.com.au
).
Direct Browsing to a Second-Level Domain
You can browse to a second-level domain if it is set up to host content. For example, if
com.au
were registered as a domain with its own website, you could browse to it directly. However,com.au
is reserved for structuring domain names within Australia and is not used as a standalone website. This is managed through DNS policy and registration rules set by the domain registry responsible for the.au
domain space.In summary, DNS distinguishes between different levels of domains through its hierarchical structure, managed by a combination of root, TLD, and authoritative nameservers. The ability to browse to a domain depends on whether it is registered and configured to host content, regardless of whether it's a TLD, a second-level domain, or lower.
Common DNS record types
In the context of DNS (Domain Name System), a "type" refers to the kind of DNS record in a DNS server's database, here are some common ones:
Type Function Common Example Address Record (A) Maps a domain to an IPv4 address example.com
maps to93.184.216.34
IPv6 Address Record (AAAA) Maps a domain to an IPv6 address example.com
maps to2606:2800:220:1:248:1893:25c8:1946
Canonical Name Record (CNAME) Maps a domain to another domain name (aliasing) www.example.com
aliases toexample.com
Mail Exchange Record (MX) Specifies mail servers for a domain example.com
mail handled bymail.example.com
Name Server Record (NS) Delegates a subdomain to a set of name servers sub.example.com
delegated tons1.example.com
Pointer Record (PTR) Maps an IP address to a domain (reverse DNS) 34.216.184.93
reverses toexample.com
Start of Authority Record (SOA) Stores administrative information about a zone example.com
SOA record indicatesns1.example.com
as primary NSService Locator Record (SRV) Specifies services available in a domain _sip._tcp.example.com
points to SIP server atsipserver.example.com
port 5060Text Record (TXT) Holds text information for external sources to read example.com
uses a TXT record for SPF:"v=spf1 include:_spf.example.com ~all"
- Domain Name Input - You enter
SysAdmins get through many tasks in a day. These tasks are generally prioritized based on their importance, but some tasks will have a due date - or a ticking clock ⏰. It's important to have a system in place to make sure these tasks are done on time.
Otherwise, you might not get a new starter's account created before their start date, or you might not give a dev the access they need to complete their Sprint goal.
Of course, this does not just apply to SysAdmins - use this rule for any teams or tasks that fall outside of Scrum.
Option 1: Using Outlook
Everyone receives tasks in their inbox, so it's good to know how to set a due date on your emails. Just like following up effectively, there are a many ways to do this - let's look at 3 ways:
A. followupthen.com
followupthen.com is a simple way to get an email reminder when you need to start working on something.
Just email {{ TIME/DATE }}@followupthen.com, and you'll get an email in your inbox when you need it. Of course, you'll need to give yourself time to complete the task before it's due!
Note: You can BCC @followupthen.com on any email with other people, and the reminder will only go to you.
To: 1week@followupthen.com Subject: New Starter - Sophie Belle B. Follow up flags
Follow up flags are Outlook's built-in way to set a due date on an email. Add a follow up flag from the red flag icon in the ribbon, or by right-clicking on an email | Follow up. From there you can also set a custom reminder.
The only downside is that you only get a notification (not an email) - so you might miss it.
C. Microsoft To Do
Microsoft To Do is available within Outlook, as a separate app, or on the web. It's a great way to keep track of tasks, reminders and other lists. It can also integrate follow up flags from Outlook.
Option 2: Using Zendesk
SysAdmins will mostly work out of a ticketing system like Zendesk. Other ticketing systems likely have similar functionality to the below.
In Zendesk, it's easy to add a due date to a task. Agents can do this in their Agent workspace. You can also give users the ability to set their own due date from the web interface or the Teams app.
Then, you can set up an automation to send an email reminder a certain number of hours before the task is due. See Zendesk's documentation for how to set it up.
